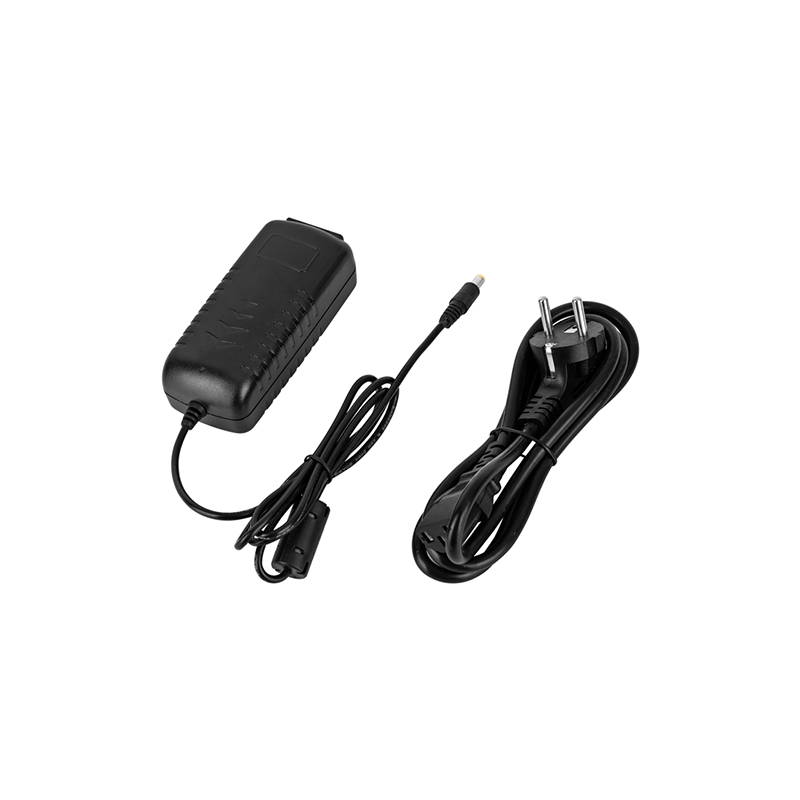

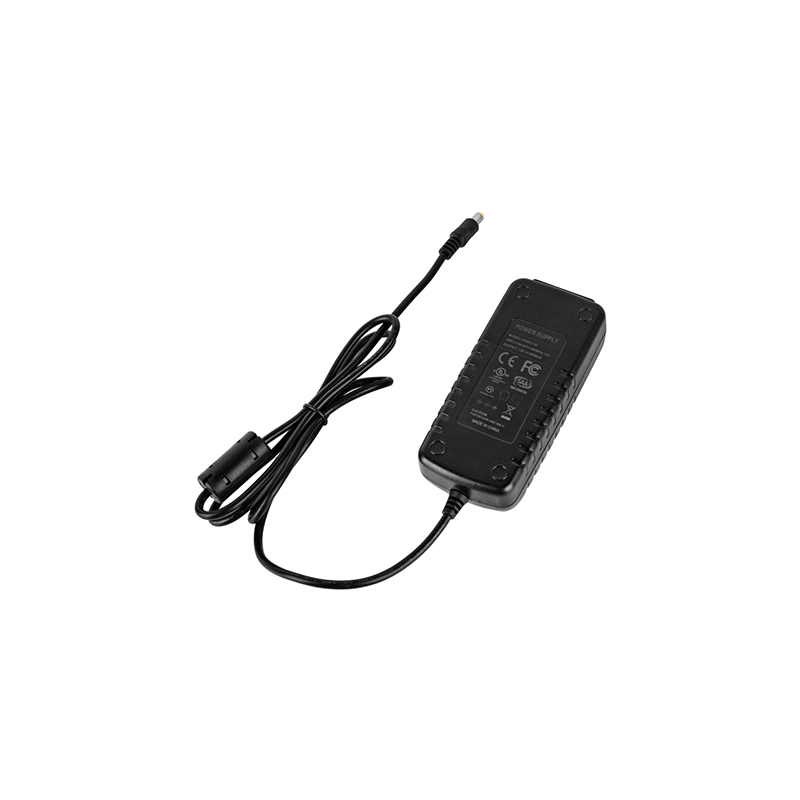

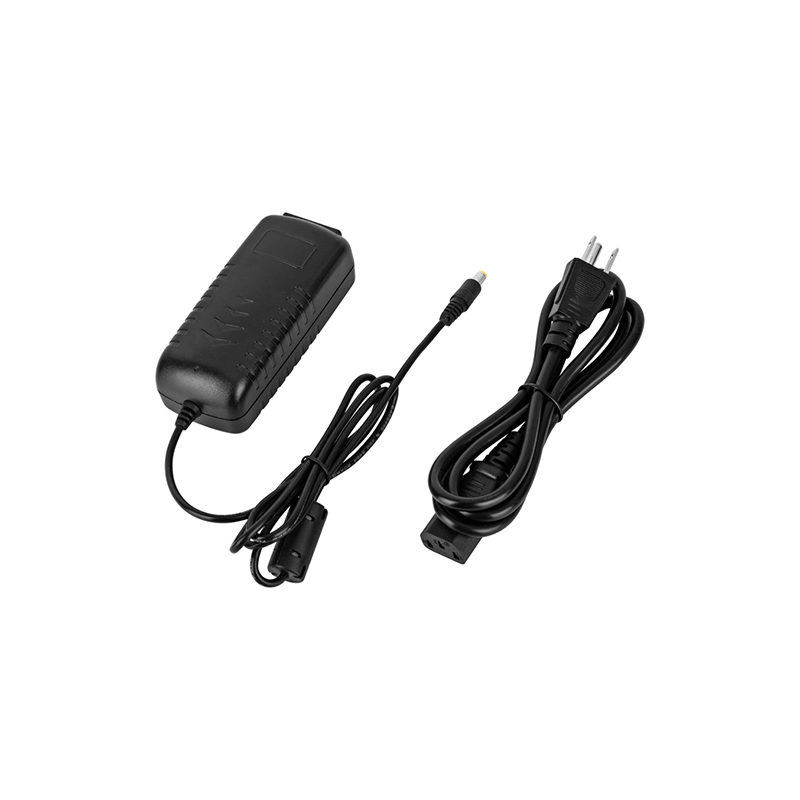

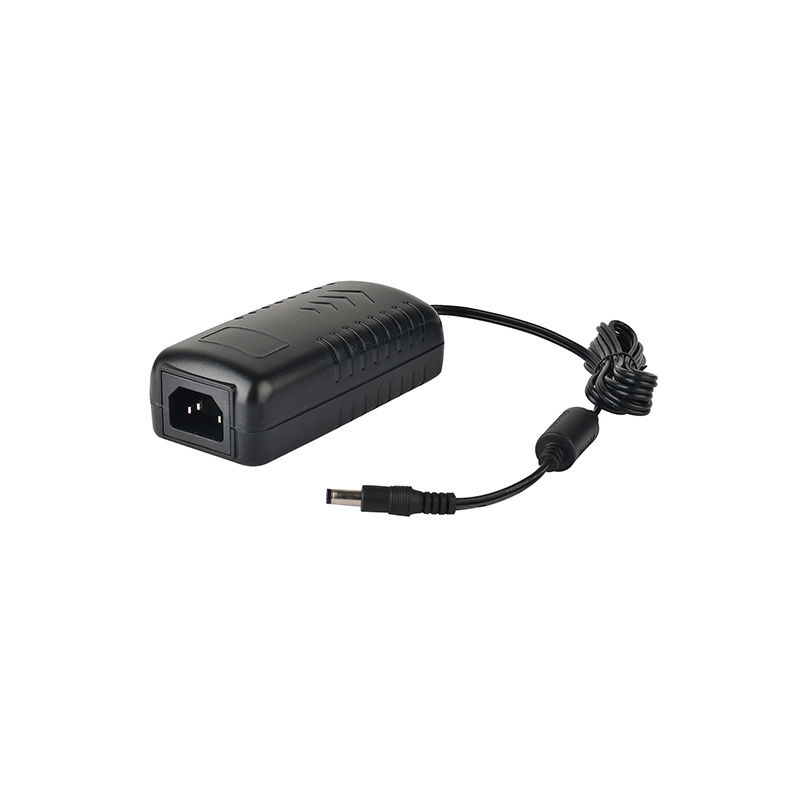

| Model | CP5000-VI | |
| Input | Voltage Range | 90 ～ 264 VAC |
| Frequency Range | 47 ～ 63 Hz | |
| Efficiency | ≥89.0%@Rated voltage | |
| AC Current | 1.6A | |
| Inrush Current | Cold start：≤30A@115Vac；≤50A@230Vac | |
| Leakage Current | IP～OP Leakage current：≤0.25mA，Touch current ＜0.1mA@264Vac | |
| Output | Rated Voltage | DC 12V |
| Rated Current | 5A | |
| Current Range | 0 ～ 5A | |
| Rated Power | 60W | |
| Ripple & Noise | ≤100mVpk | |
| Voltage Tolerance | ±3% | |
| Line Regulation | ≤0.1% | |
| Load Regulation | ≤3% | |
| Setup,Rise,Hold Up Time | 230Vac Full load：≤3S,≤3S,≥30mS | |
| Protection | Over load | 120% ～ 150%@Rated power. Hiccup mode, recovers automatically after fault condition is removed. |
| Over Voltage | 120% ～ 130%@Rated voltage. Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Current | 120% ～ 150%@Rated current. Hiccup mode, recovers automatically after fault condition is removed. | |
| Short Circuit | No damage,Hiccup mode, recovers automatically after fault condition is removed. | |
| Environment | Working Temp.,Humidity | Temp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing |
| Storage Temp.,Humidity | Temp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing | |
| Temp.Coefficient | ≤0.03V/℃（0℃ ～ +45℃） | |
| Vibration | 10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes | |
| Safety & EMC | Safety Standards | UL/CB/CE：EN/IEC 62368-1；EN/IEC 60950-1 |
| Withstand Voltage | IP～OP: ≥3KVac | |
| Isolation Resistance | IP～OP: ≥100MΩ@500Vdc,25℃,70% RH | |
| EMC | FCC/Part 15 ;EN55032、EN55035；EN/IEC61000 | |
| Others | DC Plug | 5.5*2.1*10mm(customizable) |
| DC Cable Length | 1.2M(customizable) | |
| Product Size | 119.4*53*39mm | |
| Packing | 40pcs/carton, 40.5*35*30CM | |
| Certificate | UL,CB,CE,FCC,SAA,CEC,ERP | |
| Warranty | 2 Years | |
