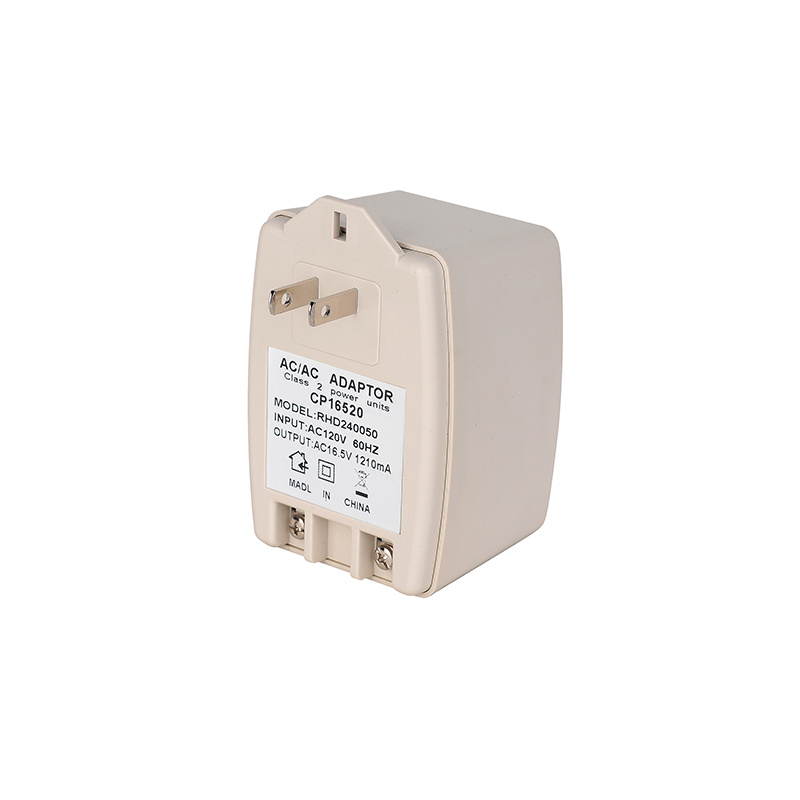

| Model | CP16520 | |
| Input | Voltage Range | 102 ～ 138Vac |
| Frequency Range | 60Hz | |
| Efficiency | ≥98%@Rated conditions | |
| AC Current | 0.2A | |
| Output | Rated Voltage | AC 16.5V |
| Rated Current | 1.212A | |
| Current Range | 0 ～ 1.212A | |
| Rated Power | 20W | |
| Environment | Working Temp.,Humidity | Temp.：-10℃ ～ +50℃ ；Humidity：10% ～ 95% RH, Non-condensing |
| Storage Temp.,Humidity | Temp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing | |
| Temp.Coefficient | ≤0.05V/℃（0℃ ～ +45℃） | |
| Vibration | 10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes | |
| Safety & EMC | Safety Standards | CE：EN/IEC 62368-1；EN/IEC 60950-1 |
| Withstand Voltage | IP～OP: ≥3KVac | |
| Isolation Resistance | IP～OP: ≥100MΩ@500Vdc,25℃,70% RH | |
| EMC | FCC/Part 15 ;EN55032、EN55035；EN/IEC61000 | |
| Product Size | 99.8*65.6*54.5mm | |
| Packing | 20pcs/carton，35*33*12CM | |
| Warranty | 1 Year | |
