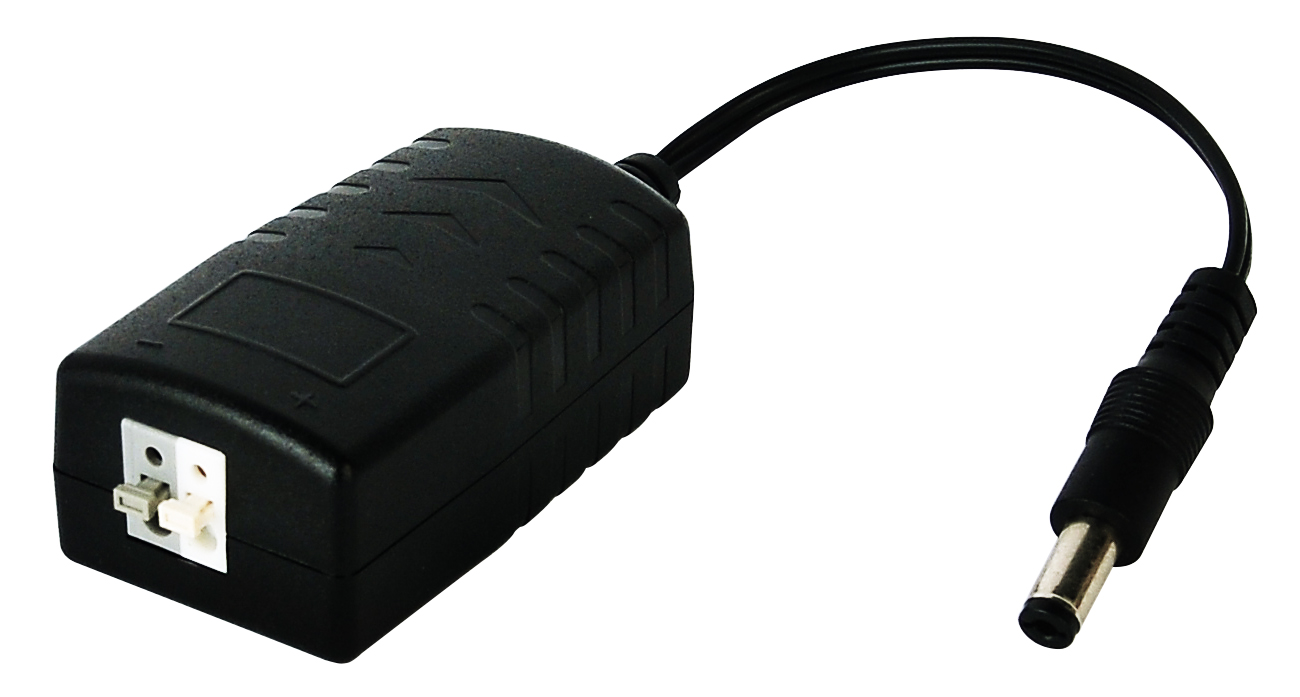

| Model | HTD-CVT1202000 | |
| Input | Voltage Range | 20 ～ 24 VAC |
| Frequency Range | 47 ～ 63 Hz | |
| Efficiency | ≥89%@Rated conditions | |
| AC Current | 1A | |
| Inrush Current | / | |
| Leakage Current | / | |
| Output | Rated Voltage | DC 12V |
| Rated Current | 2A | |
| Current Range | 0 ～ 2A | |
| Rated Power | 24W | |
| Ripple & Noise | ≤100mVpk | |
| Voltage Tolerance | ±3% | |
| Line Regulation | ≤0.1% | |
| Load Regulation | ≤3% | |
| Setup,Rise,Hold Up Time | 24VAC Full load：≤10mS,≤10mS,≥20mS | |
| Protection | Over load | 105% ～ 150%@Rated power。 |
| Over Voltage | / | |
| Over Current | 105% ～ 150%@Rated current。 | |
| Environment | Working Temp.,Humidity | Temp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing |
| Storage Temp.,Humidity | Temp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing | |
| Temp.Coefficient | ≤0.5V/℃（0℃ ～ +45℃） | |
| Vibration | 10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes | |
| Others | DC Plug | 5.5*2.1*10mm(customizable) |
| DC Cable Length | 14CM(customizable) | |
| Product Size | 61.5*33*24.5mm | |
| Packing | 200pcs/carton，45*26.5*20.5CM | |
| Certificate | CE | |
| Warranty | 1 Year | |
