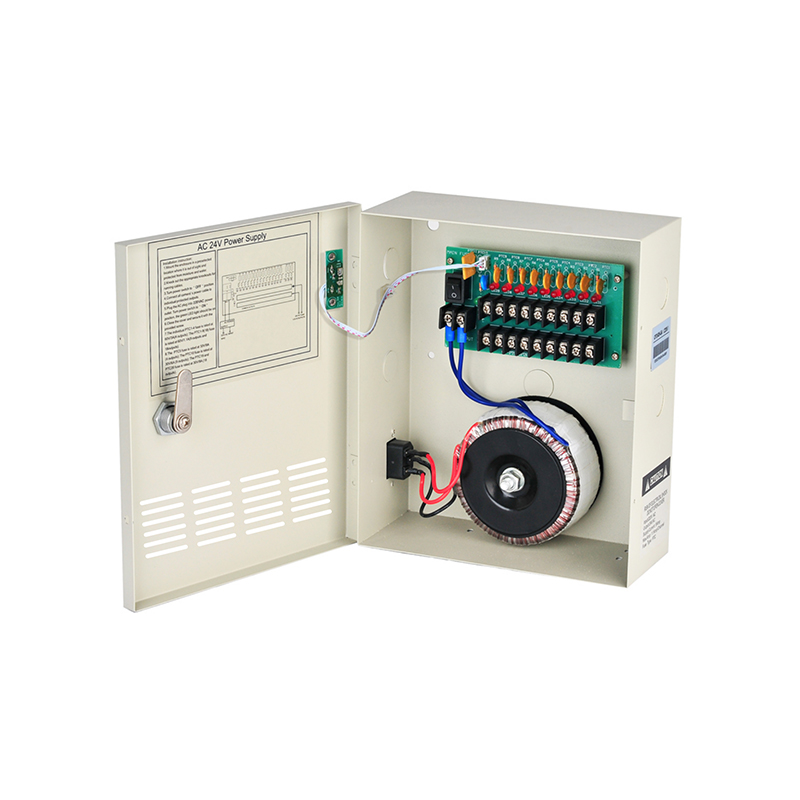

| Model | CP2409-10A | |
| Input | Voltage Range | 94 ～ 126Vac Or 187-253Vac |
| Frequency Range | 60Hz Or 50Hz | |
| Efficiency | ≥98%@Rated voltage | |
| AC Current | 3A Max Or 1.5A Max | |
| Inrush Current | / | |
| Leakage Current | ＜0.1mA@126Vac Or ＜0.1mA@253Vac | |
| Output | Rated Voltage | AC 24V |
| Rated Current | 10A | |
| Voltage Adjustment Range | ||
| Current Range | 0～10A | |
| Rated Power | 240W | |
| Total Output Channel | 9CH | |
| Fuse type | 2A PTC/CH | |
| Ripple & Noise | / | |
| Voltage Tolerance | / | |
| Line Regulation | / | |
| Load Regulation | / | |
| Setup,Rise,Hold Up Time | / | |
| Protection | Over load | / |
| Over Voltage | / | |
| Over Current | / | |
| Short Circuit | No damage,PTC protection mode，recovers automatically after fault condition is removed. | |
| Environment | Working Temp.,Humidity | Temp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing |
| Storage Temp.,Humidity | Temp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing | |
| Temp.Coefficient | ≤0.05V/℃（0℃ ～ +45℃） | |
| Vibration | 10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes | |
| Safety & EMC | Safety Standards | CE：EN/IEC 62368-1；EN/IEC 60950-1 |
| Withstand Voltage | IP～OP: ≥3KVac | |
| Isolation Resistance | IP～OP: ≥100MΩ@500Vdc,25℃,70% RH | |
| EMC | FCC/Part 15 ;EN55032、EN55035；EN/IEC61000 | |
| Others | Product Size | 206.4*242.3*84.8mm |
| Packing | 8pcs/carton 51.6*40*22.8CM | |
| Certificate | CE,FCC | |
| Warranty | 2 Years | |
