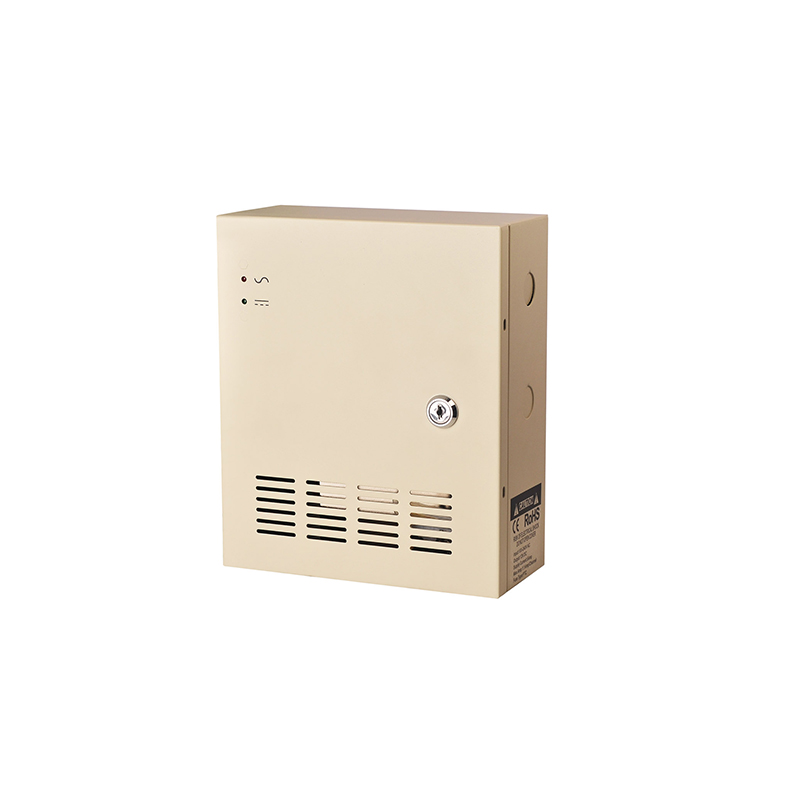

High Quality Power Box
美女
CP1209-10A
DC12V 10A 9CH 120W output
Resettable PTC fuse rated 2A
Build-in energy saving smart cooling fan
Heavy duty steel case painted insulation coating
Indicators for AC input and DC output
Easy knocked wire connecting holes
Regular protection OVP, SCP, OCP
UL,CB,CE,FCC,ROHS approved


  • Detail
  • Dwnload
ModelCP1209-10A
InputVoltage Range90 ~ 264 VAC
Frequency Range47 ~ 63 Hz
Efficiency≥88%@Rated voltage
AC Current3.0A
Inrush CurrentCold start:≤40A@115Vac;≤70A@230Vac
Leakage Current<0.75mA@264Vac
OutputRated VoltageDC 12V
Rated Current10A
Voltage Adjustment RangeDC 12V ~ 15V
Current Range0~10A
Rated Power120W
Total Output Channel9路
Fuse type2A PTC/路
Ripple & Noise≤150mVpk
Voltage Tolerance±3%
Line Regulation≤0.1%
Load Regulation≤0.1%
Setup,Rise,Hold Up Time230Vac Full load:≤3S,≤3S,≥10mS
ProtectionOver load120% ~ 150%@Rated power.PTC protection mode,recovers automatically after fault condition is removed.
Over Voltage120% ~ 130%@Rated voltage.Hiccup mode, recovers automatically after fault condition is removed.
Over Current120% ~ 150%@Rated current.PTC protection mode,recovers automatically after fault condition is removed.
Short CircuitNo damage,PTC protection mode,recovers automatically after fault condition is removed.
EnvironmentWorking Temp.,HumidityTemp.:-10℃ ~ +40℃ ;Humidity:10% ~ 95% RH, Non-condensing
Storage Temp.,HumidityTemp.:-20℃ ~ +85℃ ;Humidity:10% ~ 95% RH, Non-condensing
Temp.Coefficient≤0.03V/℃(0℃ ~ +45℃)
Vibration10 ~ 500Hz,2G 10min./1cycle, 60min. each along X,Y,Z axes
Safety & EMCSafety StandardsUL/CB/CE:EN/IEC 62368-1;EN/IEC 60950-1
Withstand VoltageIP~OP: ≥1.5KVac
Isolation ResistanceIP~OP: ≥100MΩ@500Vdc,25℃,70% RH
EMCFCC/Part 15 ;EN55032、EN55035;EN/IEC61000
OthersProduct Size206.4*242.3*84.8mm
Packing8pcs/carton 51.6*40*22.8CM
CertificateUL,CB,CE,FCC,ROHS
Warranty2 Years
