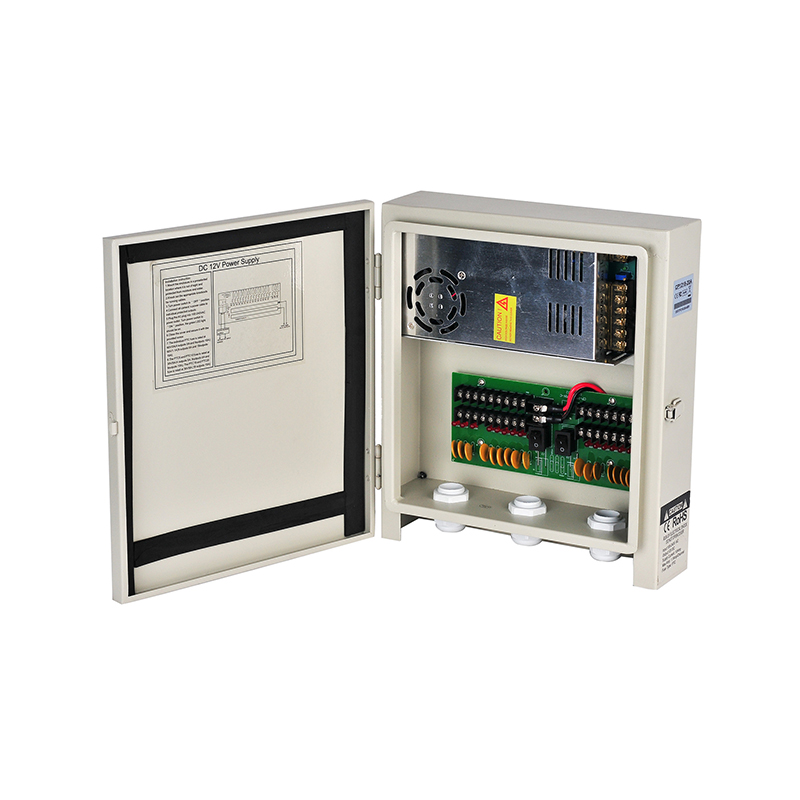

Model | Waterproof power box | |
Input | Voltage Range | 90 ~ 264 VAC |
Frequency Range | 47 ~ 63 Hz | |
Output | Rated Voltage | 12V |
Rated Current | 5A/10A/20A/30A | |
Voltage Adjustment Range | DC 12V ~ 15V | |
Rated Power | 60W/120W/240W/360W | |
Total Output Channel | 4CH/9CH/18CH | |
Fuse type | 1.1A PTC/CH; 2A PTC/CH | |
Voltage Tolerance | ±3% | |
Line Regulation | ≤0.1% | |
Load Regulation | ≤0.1% | |
Setup,Rise,Hold Up Time | 230Vac Full load:≤3S,≤3S,≥50mS | |
Protection | Over load | 120% ~ 150%@Rated power.PTC protection mode,recovers automatically after fault condition is removed. |
Over Voltage | 120% ~ 130%@Rated voltage.Hiccup mode, recovers automatically after fault condition is removed. | |
Over Current | 120% ~ 150%@Rated current.PTC protection mode,recovers automatically after fault condition is removed. | |
Short Circuit | No damage,PTC protection mode,recovers automatically after fault condition is removed. | |
Environment | Working Temp.,Humidity | Temp.:-10℃ ~ +40℃ ;Humidity:10% ~ 95% RH, Non-condensing |
Storage Temp.,Humidity | Temp.:-20℃ ~ +85℃ ;Humidity:10% ~ 95% RH, Non-condensing | |
Temp.Coefficient | ≤0.03V/℃(0℃ ~ +45℃) | |
Vibration | 10 ~ 500Hz,2G 10min./1cycle, 60min. each along X,Y,Z axes | |
Safety & EMC | Safety Standards | UL/CB/CE:EN/IEC 62368-1;EN/IEC 60950-1 |
Withstand Voltage | IP~OP: ≥1.5KVac | |
Isolation Resistance | IP~OP: ≥100MΩ@500Vdc,25℃,70% RH | |
EMC | FCC/Part 15 ;EN55032、EN55035;EN/IEC61000 | |
Others | Waterproof level | IP65 |
Product Size | 266.4*300*85mm | |
Packing | 4pcs/carton 59.5*33*20.5CM | |
Certificate | UL,CB,CE,FCC,ROHS | |
Warranty | 2 Years |
