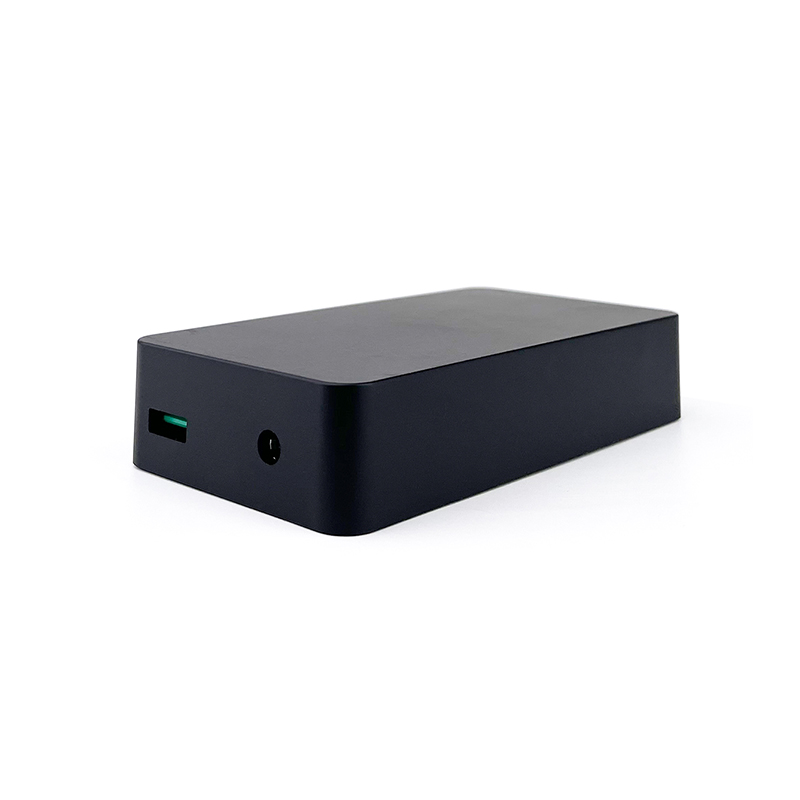

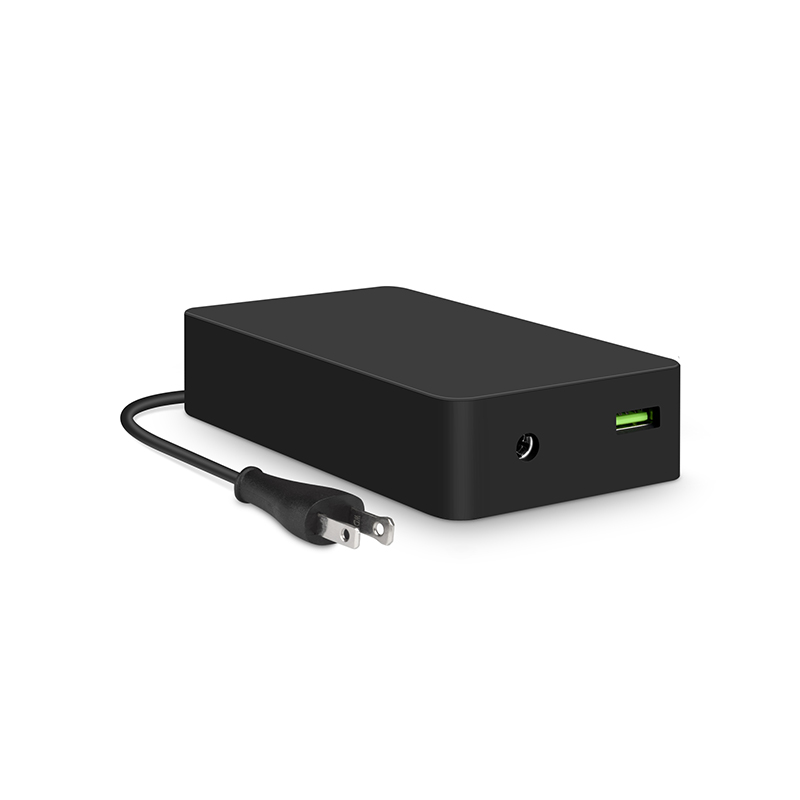

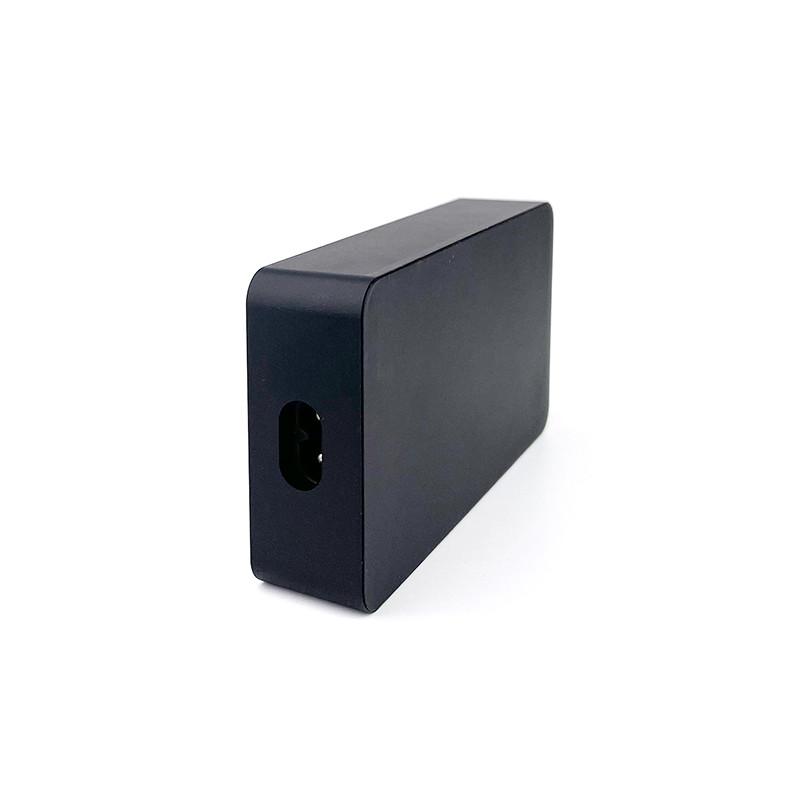

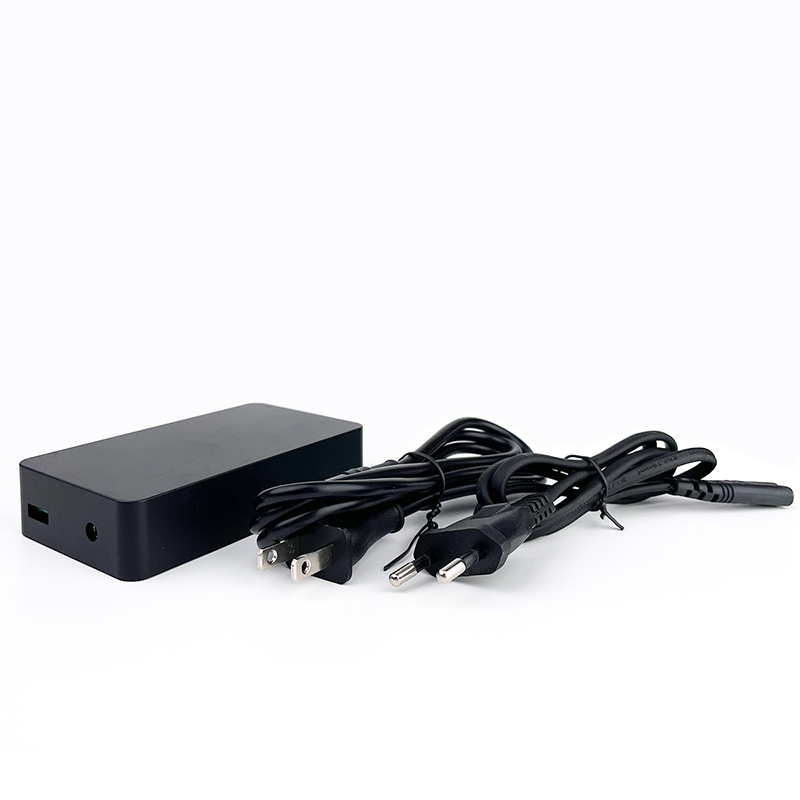

| Model | SZ-83W-LPQ | |
| Input | Voltage Range | 90 ～ 264 VAC |
| Frequency Range | 47 ～ 63 Hz | |
| Efficiency | Efficiency Level VI | |
| AC Current | 2.0A | |
| Inrush Current | Cold start：≤30A@115Vac；≤50A@230Vac | |
| Leakage Current | IP～OP Leakage current：≤0.25mA，Touch current＜0.1mA@264Vac | |
| Output | Rated Voltage&Rated Current | DC Output 1:19.5V 3.25A USB-A QC3.0 Output 2:3.6V~12V(QC 0.2V/Step), 3.6~6.5V/3A, 6.5~9V/ 2A, 9~12V/ 1.5A DC Tips Support: HP,DELL,LENOVO |
| Rated Power | 83W Max | |
| Ripple & Noise | ≤100mVpk | |
| Voltage Tolerance | 5V,9V,12V:±5%;19.5VDC:±3% | |
| Line Regulation | ≤0.1% | |
| Load Regulation | ≤5%@5V；≤3%@ Other than 5V output voltage； | |
| Setup,Rise,Hold Up Time | 230Vac Full load：≤1S,≤1S,≥10mS | |
| Protection | Over load | 110% ～ 130%@Rated power. Constant power protection mode，recovers automatically after fault condition is removed. |
| Over Voltage | 5VDC：6.5V;9VDC:10.8V;12VDC:14.4V.Cut-off protection mode,recovers after power failure. | |
| Over Current | 110% ～ 130%@Rated power. Constant power protection mode，recovers automatically after fault condition is removed. | |
| Short Circuit | No damage,Hiccup mode, recovers automatically after fault condition is removed. | |
| Environment | Working Temp.,Humidity | Temp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing |
| Storage Temp.,Humidity | Temp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing | |
| Temp.Coefficient | ≤0.03V/℃（0℃ ～ +45℃） | |
| Vibration | 10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes | |
| Safety & EMC | Safety Standards | UL/CB/CE：EN/IEC 62368-1；EN/IEC 60950-1 |
| Withstand Voltage | IP～OP: ≥3KVac | |
| Isolation Resistance | IP～OP: ≥100MΩ@500Vdc,25℃,70% RH | |
| EMC | FCC/Part 15 ;EN55032、EN55035；EN/IEC61000 | |
| Others | Product Size | 120*65*25mm |
| Certificate | UL,CB,CE,FCC,CEC,DOE,ERP | |
| Warranty | 2 Years | |
