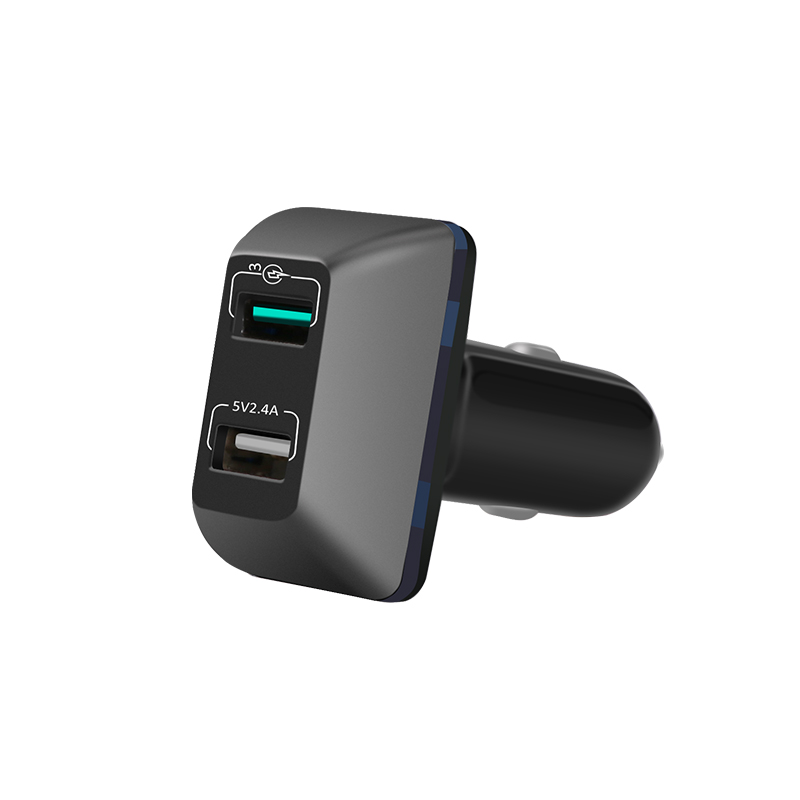

| Model | SZ-30W-Q | |
| Input | Voltage Range | DC10 ～ 30V |
| Frequency Range | / | |
| Efficiency | ≥85%@Rated voltage | |
| AC Current | / | |
| Inrush Current | / | |
| Leakage Current | / | |
| Output | Rated Voltage&Rated Current | USB-A QC3.0 Output 1: 3.6V~12V(QC 0.2V/Step), 3.6~6.5V/3A, 6.5~9V/ 2A, 9~12V/ 1.5A USB-A Output 2: 5V 2.4A |
| Rated Power | 30W Max | |
| Ripple & Noise | ≤100mVpk | |
| Voltage Tolerance | 5V,9V,12V:±5% | |
| Line Regulation | ≤0.1% | |
| Load Regulation | ≤5%@5V；≤3%@ Other than 5V output voltage； | |
| Setup,Rise,Hold Up Time | 230Vac Full load：≤1S,≤1S,≥30mS | |
| Protection | Over load | 110% ～ 130%@Rated power. Constant power protection mode，recovers automatically after fault condition is removed. |
| Over Voltage | 110% ～ 140%@Rated voltage, Hiccup mode, recovers automatically after fault condition is removed. | |
| Over Current | 110% ～ 130%@Rated power. Constant power protection mode，recovers automatically after fault condition is removed. | |
| Short Circuit | No damage,Hiccup mode, recovers automatically after fault condition is removed. | |
| Environment | Working Temp.,Humidity | Temp.：-10℃ ～ +40℃ ；Humidity：10% ～ 95% RH, Non-condensing |
| Storage Temp.,Humidity | Temp.：-20℃ ～ +85℃ ；Humidity：10% ～ 95% RH, Non-condensing | |
| Temp.Coefficient | ≤0.03V/℃（0℃ ～ +45℃） | |
| Vibration | 10 ～ 500Hz，2G 10min./1cycle, 60min. each along X,Y,Z axes | |
| Warranty | 2 Years | |
